Track HubSpot Live Chats Using GTM

HubSpot Live Chat is a tool that allows businesses to engage with website visitors in real-time through a chat interface. It offers a direct communication channel to address queries, provide support, and convert visitors into leads.

It's easy to install.

You can inject the HubSpot script into the head tag of all your pages and enable the Live Chat function in our account, or you can run it through GTM.

The implementation will have the bot up and functioning on your site, and customers can find it on any page where you enabled the script. As customers engage with the chatbot, leads from these bot chat logs will filter into your HubSpot account but not trigger anything in your Google Analytics.

If you do want to track these engagements as a lead, GA4's auto tracker will not cut it, and you'll need to create a custom javascript listener (the same goes for HubSpot forms) to scrape page interactions for HubSpot engagements first and then pass that on to your GA4 account.

Tracking live chat forms is crucial for several reasons:

• Lead Generation: It helps identify the effectiveness of live chat in generating leads.
• Conversion Rate Optimisation: By analysing chat interactions, you can optimise chat scripts and agent behaviour to increase conversions.
• Customer Satisfaction: Tracking chat volume and resolution times can help measure customer satisfaction.
• Sales and Marketing Alignment: Understanding how chat leads convert into customers can improve sales and marketing collaboration.

Setting Up the Tracking with GTM and GA4

The best way to do it without involving your developers is to set up GTM on your site. Google Tag Manager (GTM) is a tag management system that allows you to manage and deploy marketing tags (such as Google Analytics, conversion pixels, etc.) on your website without needing to modify the code.

Here's a step-by-step guide to tracking HubSpot live chat forms with GTM and GA4:

• Create a Custom HTML Tag in GTM to listen for Hubspot chat events:
• This tag will listen for HubSpot's live chat events and push data to the data layer.

Create a new Custom HTML tag in GTM.

Paste the following code, into the HTML field and set the listener to fire on all pages or any page you have the live chat enabled on.

JavaScript is as follows:

}

Create Data Layer Variables in GTM:

The way the listener works it fires off a custom event along with a few parameters you might be interested in. To ensure you pass on this data to your GA4 account, consider creating variables to capture information from the HubSpot live chat form, such as:

• Variable name: DLV – eventCategory
• Variable type: Data layer variable
• Data layer variable name: eventCategory
• Data layer version: version 2

• Variable name: DLV – eventAction
• Variable type: Data layer variable
• Data layer variable name: eventAction
• Data layer version: version 2

• Variable name: DLV – eventLabel
• Variable type: Data layer variable
• Data layer variable name: eventLabel
• Data layer version: version 2

Create a Trigger in GTM:

1. Head over to triggers
2. Create a new Custom Event trigger in GTM.
3. Set the event name to "hubspot_chat" as per the listeners' definition
4. Save the trigger

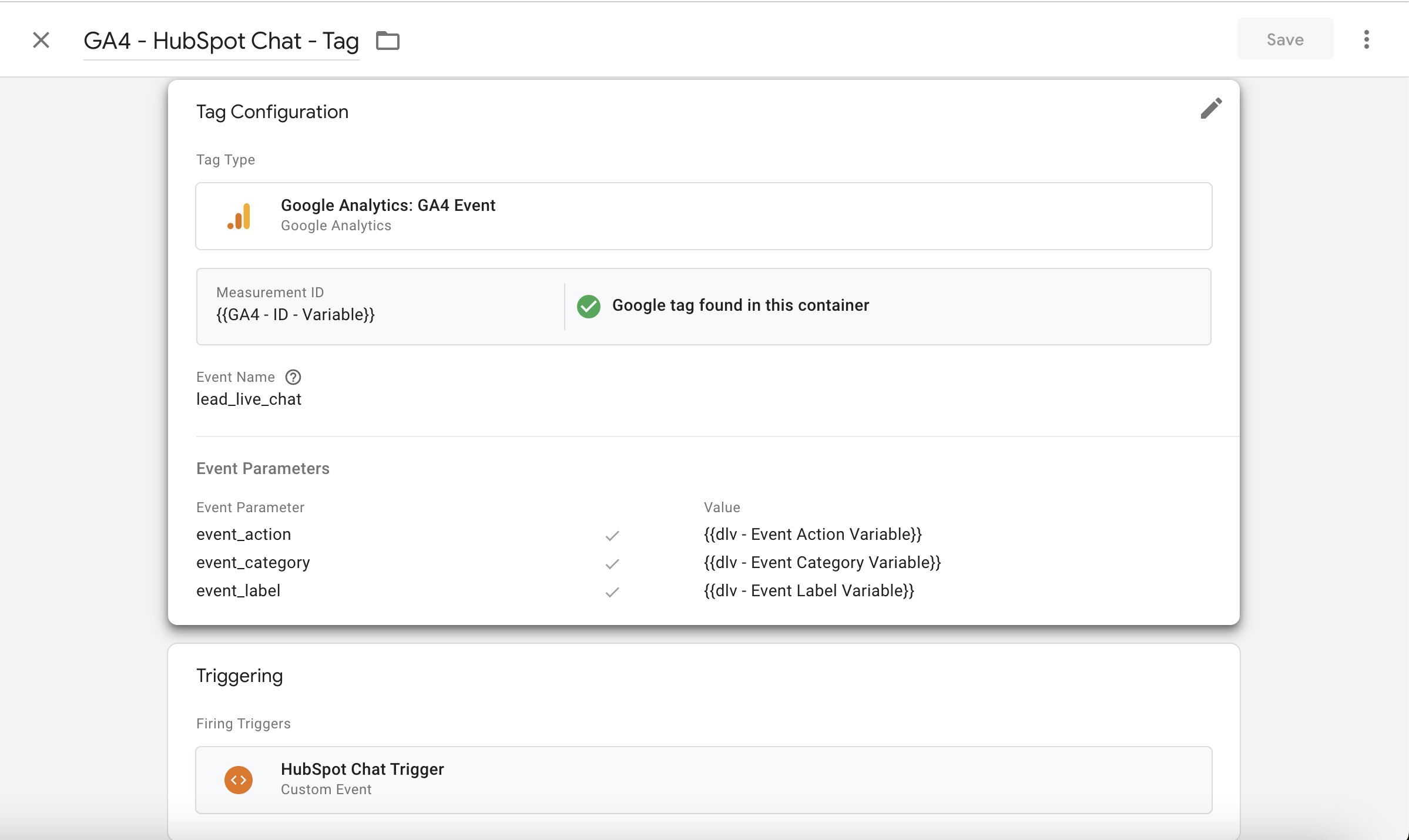

Create a GA4 Event Tag in GTM:

1. Create a new GA4 Event tag in GTM.
2. Add your GA4 ID
3. Configure the tag to fire with a unique event name - "lead_live_chat" trigger.
4. Set the event name and parameters to capture relevant information from the data layer variables. Parameters:
5. event_Category: {{dlv - Event Category Variable}}
6. event_Label: {{dlv - Event Label Variable}}
7. event_Action: {{dlv - Event Action Variable}}
8. Append the trigger you created earlier
9. Click save and submit your changes

Test and Debug:

• Thoroughly test the setup to ensure data is being sent to GA4 correctly.
• Use the GTM Preview mode to debug any issues.
• Check that the events and their custom parameters are pulling through to your GA4 account using the debug view

Create Custom Dimensions and Metrics in GA4:

Once you're pushing these events to GTM, you will need to create additional events manually based on the events you want to track, for example, "conversation started", etc.

Since you're using event action, level, and event, there shouldn't be a need for custom dimensions for these metrics to capture additional information about live chat leads.

If, however, you do have issues, you can add them manually or if you've changed the naming conventions for some reason.

Additional considerations

• Data Privacy: Handle visitor data with care and comply with relevant privacy regulations.
• Chat Quality: Track chat quality metrics like average chat duration, customer satisfaction, and first response time.
• Integration with CRM: Connect your live chat data with your CRM to nurture leads effectively.

By following these steps, you can effectively track HubSpot live chat forms and gain valuable insights into your lead generation process. We hope this was straightforward and wish you many happy days of tracking.

If, on the off chance, this guide isn't enough to get your tracking working, is now outdated due to HubSpot changes, or you need a fresh pair of eyes to review your tracking, please feel free to reach out; we're more than happy to help you.
